HDR-100-15N | MEAN WELL

Power supply, 13.5 to 18 VDC, 6.5 A, 97 W, HDR-100-15N

Order No.: 62C1509
EAN: 4099891285722
MPN:
HDR-100-15N
Series: HDR-100
HDR-100-15N MEAN WELL DIN Rail Power Supplies

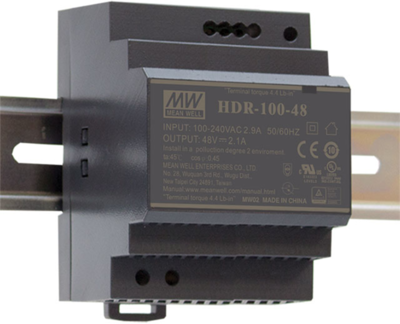

Image may differ
Unit Price (€ / pc.)
44.8868 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
44.89 € *
Price list
Quantity
Price per unit*
1 pcs.
44.8868 €
5 pcs.
42.1974 €
50 pcs.
37.3541 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power supply, HDR-100-15N, MEAN WELL

HDR-100-15N is an economical, ultra-slim 100 W DIN rail power supply. The housing is only 70 mm wide, which allows space savings in cabinets. This unit is suitable for the entire input range from 85 VAC to 264 VAC. With an efficiency of up to 90%, it can operate at an ambient temperature between -30 °C and 70 °C under air convection.

Features

  • Power consumption without load <0.3 W
  • Insulation class II
  • Limited energy source
  • DC output voltage adjustable
  • Protection functions: Short circuit, overload, overvoltage
  • Cooling by free air convection
  • LED indicator for power on

Applications

  • Budgetary control system
  • Building automation
  • Industrial control system
  • Factory automation
  • Electro-mechanical device
Technical specifications
Depth 54.5 mm
Output voltage DC 13.5 to 18 VDC
Output current 6.5 A
Width 70 mm
Height 90 mm
Power 97 W
Number of outputs 1
efficiency 89 %
Input voltage AC 85-264 VAC, 120-370 VDC
Logistics
Country of origin CN
Customs tariff number 85043180
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
