EDR-150-24 | MEAN WELL

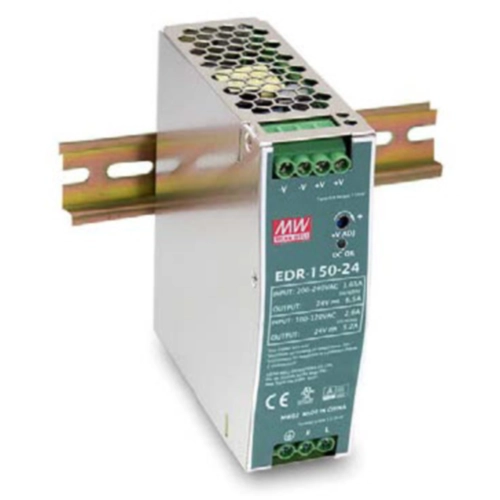

Power supply, 24 to 28 VDC, 6.5 A, 156 W, EDR-150-24

Order No.:  62C1503
MPN:
EDR-150-24
Series:  EDR-150
EAN: 4099891285661
MEAN WELL
default L
default S
Images may differ
Unit Price (€ / pc.)
53.2525 € *
Available: 3 pcs.
Leadtime: 3 Weeks **
Total Price:
53.25 € *
Quantity
Price per unit*
1 pcs.
53.2525 €
5 pcs.
50.0633 €
15 pcs.
48.1474 €
50 pcs.
46.0054 €
150 pcs.
44.1014 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

Power supply, EDR-150-24, MEAN WELL

EDR-150-24 is an economical, slim DIN rail power supply. The housing is only 40 mm wide, which allows space savings in cabinets. The device is suitable for the entire input range from 90 VAC to 264 VAC. With an efficiency of up to 87%, it can operate at an ambient temperature between -20°C and 60°C under air convection.

Features

  • Universal AC input/full range
  • Protection functions: Short circuit, overload, overvoltage, overtemperature
  • Cooling by free air convection
  • 100% full load burn-in test

Applications

  • Industrial control system
  • Equipment for semiconductor manufacturing
  • Factory automation
  • Electro-mechanical device
Technical specifications
Number of outputs 1
Output voltage DC 24 to 28 VDC
Output current 6.5 A
Width 40 mm
Input voltage AC 90-264 VAC, 127-370 VDC
Height 125.2 mm
Power 156 W
Depth 113.5 mm
efficiency 87 %
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
