RSP-750-48 | MEAN WELL
Switching power supply, 48 VDC, 15.7 A, 753.6 W, RSP-750-48
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
189.9240 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
189.92 € *
Price list
Quantity
Price per unit*
1 pcs.
189.9240 €
5 pcs.
180.4040 €
10 pcs.
171.4195 €
20 pcs.
162.9110 €
50 pcs.
146.5485 €
*incl. VAT plus shipping costs
Subject to prior sale

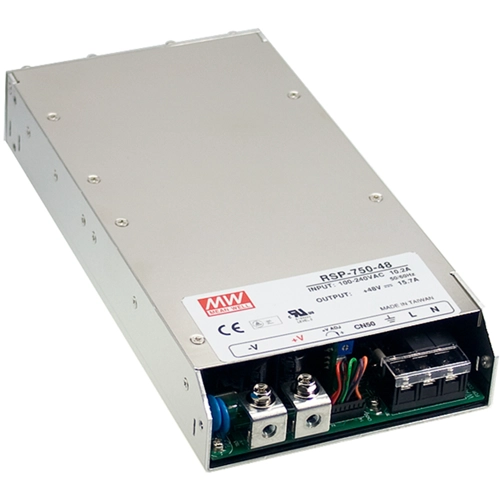

Power Supply, RSP-750-48, MEAN WELL
The RSP-750-48 is a 750 W single output enclosed type AC/DC power supply. This product operates for 90-264 VAC input voltageand offers the models with the DC output mostly demanded from the industry. Each model is coded by the built-in fan with fan speed control, working for the temperature up to 70 °C. Moreover, RSP-750-48 provides vast design flexibility by equipping various built-in functions such as the output programming remote ON-OFF control, auxiliary power, etc.
Features
- Universal AC input/Full range
- Built-in active PFC function
- High efficiency up to 92 %
- Forced air coolng by built-in DC fan
- Output voltage and constant current level programmable
Applications.
- Factory control or automation apparatus
- Tast and measurement intrument
- Laser related machine
- Burn-in facility
- RF application
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 15.7 A | |
| Output voltage DC | 48 VDC | |
| Input voltage AC | 90-264 VAC/127-370 VDC | |
| Power | 753.6 W | |
| efficiency | 92 % | |
| Length | 250 mm | |
| Width | 127 mm | |
| Height | 41 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
