RSP-1500-12 | MEAN WELL
Power supply, 12 VDC, 12.5 A, 1500 W, RSP-1500-12
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
529.0502 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
529.05 € *
Price list
Quantity
Price per unit*
1 pcs.
529.0502 €
3 pcs.
513.1756 €
10 pcs.
495.5398 €
*incl. VAT plus shipping costs
Subject to prior sale

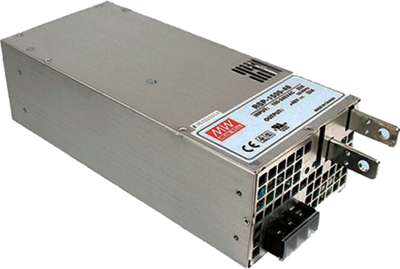

Power supplies, type Mean Well RSP-1500-12.
With short-circuit, overload, overvoltage and thermal overload protection. Alarm signal output, built-in remote ON-Off and control function; Input voltage: 90 to 264 VAC, 127 to 370 VDC. Frequency range: 47 to 63 Hz. Rated output voltage 12 V (variable from 10 to 13.5 V). Output current: 0 to 125 A. Rated power: 1500 W. Residual ripple: 150 mVpp. Efficiency: 87 %. Operating temperatures: –20 to +70 °C. Dimensions: 278 x 127 x 83.5 mm.
Type: RSP-1500-12, power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 12.5 A | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 90-264 VAC/127-370 VDC | |
| Power | 1500 W | |
| efficiency | 87 % | |
| Length | 278 mm | |
| Width | 127 mm | |
| Height | 83.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
