DBUF20-24 | MEAN WELL
Buffer module, 22-29 VDC, 20 A, for power supply, DBUF20-24
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
95.0810 € *
Available in 5 Days: 217 pcs. - if ordered today
Total Price:
95.08 € *
Price list
Quantity
Price per unit*
1 pcs.
95.0810 €
12 pcs.
90.3329 €
*incl. VAT plus shipping costs
Subject to prior sale

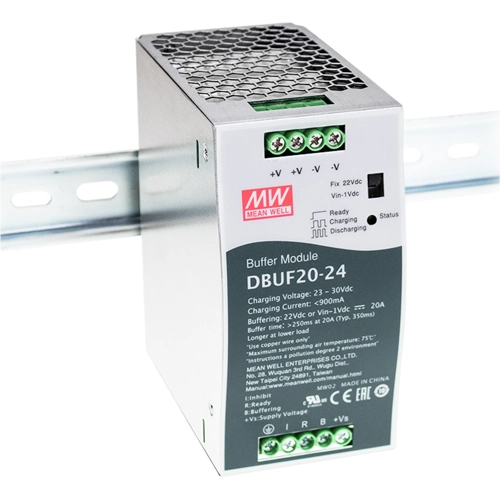

Buffer module, DBUF20-24, MEAN WELL
The DBUF20-24 buffer module is a supplementary device for regulated DC 24V power supplies. The buffer module utilizes maintenance-free electrolytic capacitors to store energy, thus eliminates the need of periodic replacement as compared to costlier batteries which also have shorter functional life span. The DBUF20-24 comes with comprehensive protection features like over voltage, over current and short circuit protections. Buffer modules can be connected in parallel to increase the output ampacity or the hold-up time.
Features
- Buffering with electrolytic capacitors instead of lead acid batteries
- LED indicator for signal status
- Supports parallel connection to extend buffering time
- Cooling by free air convection
Applications
- Industrial control system
- Semiconductor fabrication equipment
- Factory automation
- Vlectro-mechanical apparatus
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | buffer module | |
| Version | 22-29 VDC, 20 A | |
| Suitable for | power supply |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85049017 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
