MAX809REUR+T | Maxim Integrated

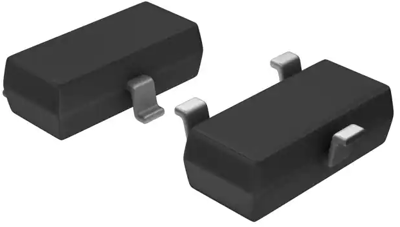

Processor Supervisor IC, SOT-23-3, MAX809REUR+T
Order No.: 41S7987
EAN: 4099879104656
MPN:
MAX809REUR+T
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Available in 5 Days: 3,810 pcs.
Leadtime: 30 Weeks **
Voltage monitoring ICs, MAX809REUR+T, maxim integrated
The MAX809REUR+T is a microprocessor (μP) supervisory circuits used to monitor the power supplies in μP and digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5 V, +3.3 V, +3.0 V, or +2.5 V powered circuits.
Features
- Precision supply-voltage monitor
- 12 µA supply current
- Power supply transient immunity
- No external components
- 3-Pin SC70 and SOT23 packages
Applications
- Computers
- Controllers
- Intelligent instruments
- Critical µP and µC power monitoring
- Portable/battery-powered equipment
Technical specifications
| Enclosure | SOT-23-3 | |
| Assembly | SMD | |
| Number of Regulators | 1 | |
| Output voltage DC | 0,4 V | |
| Output current | 20 mA | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Customs tariff number | 85423990 |
| MSL | MSL 1 |
| Original Packaging | Rolle mit 2.500 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
