DS1307Z+T | Maxim Integrated

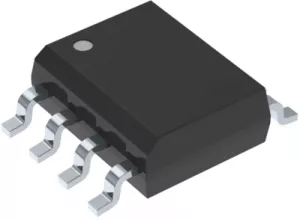

Real Time Clock, SOIC-8, DS1307Z+T
Unit Price (€ / pc.)
0.9639 € *
Available: 1,112 pcs.
Available in 5 Days: 2,375 pcs. - if ordered today
Real time clock (RTC), DS1307Z+T, maxim integrated
The DS1307Z+T is a serial real-time clock (RTC) that is a lowpower, full binary-coded decimal (BCD) clock/calendar with 56 bytes of NV SRAM.
Features
- Completely manages all timekeeping functions
- Low power operation extends battery backup run time
- 8-Pin DIP and 8-Pin SO minimizes required space
- Automatic power-fail detect and switch circuitry
- Programmable square-wave output signal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage | 5.5 V | |
| Memory size | 56 byte | |
| Version | I2C-Bus | |
| Assembly | SMD | |
| Enclosure | SOIC-8 | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
