DS1302Z+TR | Maxim Integrated

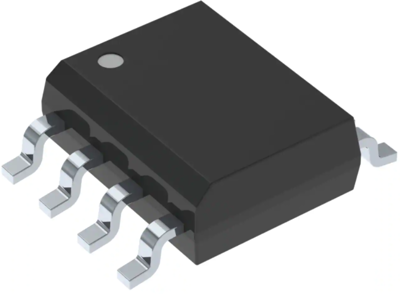

Real Time Clock, SOIC-8, DS1302Z+TR
Unit Price (€ / pc.)
1.6422 € *
Standard delivery time from the manufacturer is: On Request
Real time clock (RTC), DS1302Z+TR, maxim integrated
The DS1302Z+TR is a trickle-charge timekeeping chip that contains a real-time clock/calendar and 31 bytes of static RAM.
Features
- Completely manages all timekeeping functions
- Low power operation extends battery backup run time
- 8-Pin DIP and 8-Pin SO minimizes required space
- Simple 3-wire interface
- Single-Byte or multiple-Byte
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage | 5.5 V | |
| Memory size | 31 byte | |
| Version | Serial-3-Wire | |
| Assembly | SMD | |
| Enclosure | SOIC-8 | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
