MAX7219CNG+ | Maxim Integrated

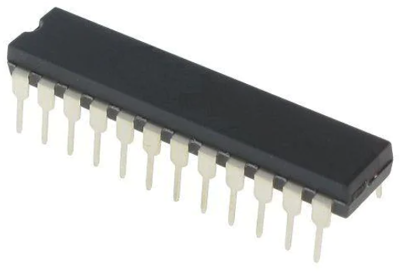

8-Digit LED display driver, PDIP-24, Maxim Integrated MAX7219CNG+
Order No.: 41S7915
EAN: 4099879089441
MPN:
MAX7219CNG+
Unit Price (€ / pc.)
14.1610 € *
Available: 105 pcs.
Available in 5 Days: 410 pcs. - if ordered today
Total Price:
14.16 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1610 €
10 pcs.
13.2090 €
50 pcs.
12.2570 €
100 pcs.
11.5430 €
*incl. VAT plus shipping costs
Subject to prior sale
Buffer, power driver, MAX7219CNG+, maxim integrated
The MAX7219CNG+ is a compact, serial input/output common-cathode display driver that interface microprocessors (μPs) to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs.
Features
- 10 MHz serial interface
- Individual LED segment control
- Digital and Analog brightness control
- Drive common-cathode LED display
- 24-Pin DIP and SO packages
Applications
- Bar-graph displays
- Industrial controllers
- Panel meters
- LED matrix displays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | 8-Digit LED display driver | |
| Enclosure | PDIP-24 | |
| Assembly | THT | |
| Input voltage | 5.5 V | |
| Output current | 5 mA | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
| Original Packaging | Bar with 15 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
