MAX3491CSD+ | Maxim Integrated

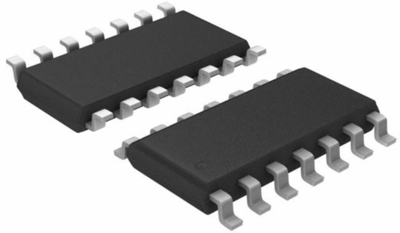

True RS-485/RS-422 Transceiver, SOIC-14, Maxim Integrated MAX3491CSD+
Unit Price (€ / pc.)
7.7469 € *
Standard delivery time from the manufacturer is: On Request
Interface ICs, MAX3491CSD+, maxim integrated
The MAX3491CSD+ is a 3.3 V, low-power transceiver for RS-485 and RS-422 communication. It features slew-rate-limited driver that minimizes EMI and reduced reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250 kbps.
Features
- Low-current shutdown mode
- 8 ns Max skew
- Operates from a single supply
- Allows up to 32 transceivers on the bus
- Current-limiting and thermal shutdown for driver overload protection
Applications
- Low-power RS-485/RS-422 networks
- Telecommunications
- Transceivers for EMI-sensitive applications
- Industrial-control local area networks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 70 °C | |
| Product type | True RS-485/RS-422 Transceiver | |
| Assembly | SMD | |
| min. operating temperature | 0 °C | |
| Input voltage | 12 V | |
| Enclosure | SOIC-14 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
