MAX1737EEI+T | Maxim Integrated

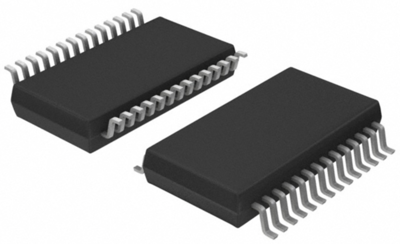

Battery charger IC, QSOP-28, MAX1737EEI+
Order No.: 41S7931
EAN: 4099879097460
MPN:
MAX1737EEI+T
Unit Price (€ / pc.)
5.4145 € *
Standard delivery time from the manufacturer is: On Request
Battery charging ICs, MAX1737EEI+, maxim integrated
The MAX1737EEI+ is a switch-mode lithium-ion (Li+) battery charger that charges one to four cells. It provides a regulated charging current and a regulated voltage with only a ±0.8 % total voltage error at the battery terminals.
Features
- Stand-alone charger for up to four Li+ cells
- Low dropout
- Safely precharges near-dead cells
- Continuous voltage and temperature monitoring
- Input current limiting
Applications
- Notebook computers
- Li+ battery packs
- Hand-held instruments
- Desktop cradle chargers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | QSOP-28 | |
| Input voltage | 28 V | |
| Output voltage DC | 4.2 VDC | |
| Output current | 4 A | |
| Assembly | SMD | |
| Number of pins | 28 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
