1812.1102 | Marquardt

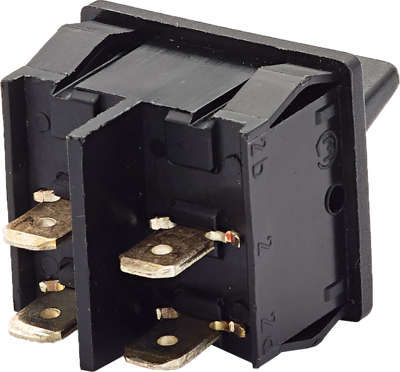

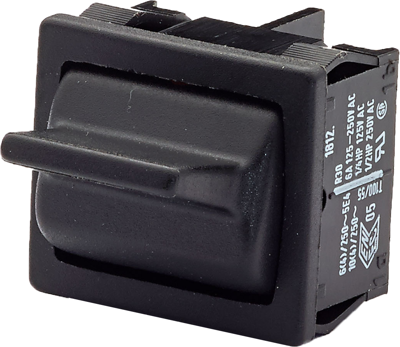

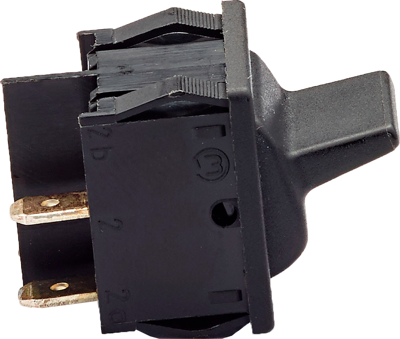

Toggle switch, black, 2 pole, latching, On-Off, 10 A/250 VAC, silver-plated, 1812.1102
Toggle switches series 1810, type Marquardt 1811../1812../1818../1819.
Single or double-pole, distinct actuation characteristic; Breaking capacity: see the table. Contact resistance (new condition): < 100 mohm (1.0 A/12 VDC). Insulation resistance (new condition): > 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for devices of safety class II. Connection type: 4.8 x 0.8 mm tab terminals. Actuator and housing material: PA. Contacts: silver. Connections: silver-plated. Inflammability: UL 94 V-2. Mounting: snap-on mounting on panels with a thickness of 0.75 to 3.0 mm. Ambient temperatures: –20 to +55 °C (connecting side to +100 °C). Test logos: ENEC, UL, CSA.
Off switch.
Technical attributes (type, number of poles, switching action OFF, ON, breaking capacity): 1812.1102, double-pole, ON-OFF, 10 (4.0) A/250 VAC, 1E4
| Filter | Property | Value |
|---|---|---|
| Shift position | On-Off | |
| Breaking capacity | 10 A/250 VAC | |
| Latching switching function | latching | |
| Pin number | 2 pole | |
| contact surface | silver-plated | |
| Connection | faston plug | |
| Design | vertical | |
| Protection class | IP40 | |
| Actuator colour | black | |
| illuminated | No |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
