3006.2124 | Marquardt

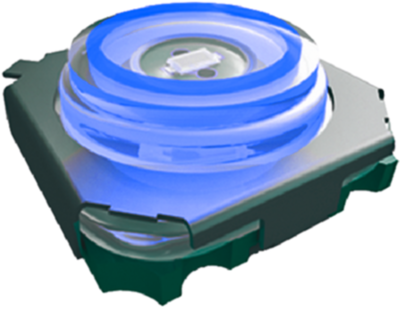

Short-stroke pushbutton, 1 Form A (N/O), 50 mA/28 V, illuminated, blue, actuator (transparent), 4 N, SMD, 3006.2124
Unit Price (€ / pc.)
3.1535 € *
Available: 1,583 pcs.
Total Price:
3.15 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1535 €
10 pcs.
2.7727 €
100 pcs.
2.4395 €
250 pcs.
2.3324 €
1800 pcs.
2.0706 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD short-stroke pushbutton with LED, colour: blue, single-pole NO contact, low overall height, pleasant actuation characteristics thanks to clearly perceptible pressure point: switching voltage: max. 28 V, switching current: max. 50 mA, switching capacity: max. 1.0 W, contact resistance (new condition): < 100 m Ohm, bounce time: < 5.0 ms, protection class: IP 40, switching force: 4.0 N (+1.0/-0.5), contact material: Au, connections: gold-plated, service life:> 500,000 switching cycles. Ambient temperature: -40 to +95 °C (1.0 h to +120 °C).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 50 mA/28 V | |
| Connection | SMD | |
| Farbe der Beleuchtung | blue | |
| Width | 9.85 mm | |
| Height | 3.95 mm | |
| illuminated | Yes | |
| actuating force | 4 N | |
| Actuator colour | transparent | |
| Contact material | gold-plated | |
| Length | 9.85 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 1,800 pieces |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
