1006.1011 | Marquardt

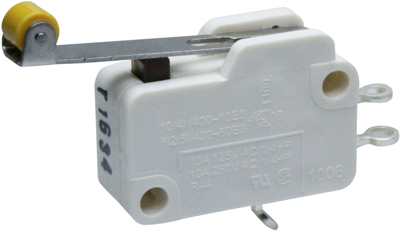

Miniature snap-action switche, On-On, solder connection, roller lever, 0.7-1.25 N, 10 (4) A/400 VAC, 1006.1011

Order No.: 12G975
EAN: 4099889211818
MPN:
1006.1011
01006.1011-03
Series: 1005
1006.1011 Marquardt Snap Action Switches
Image may differ
Unit Price (€ / pc.)
6.2237 € *
Available: 191 pcs.
Total Price:
6.22 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2237 €
10 pcs.
5.4621 €
100 pcs.
4.8076 €
250 pcs.
4.6172 €
1000 pcs.
4.3197 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature snap-action switches, series 1005, type Marquardt 1006.

type: 1006.1011

To DIN 41635 A. Flat metal roll-and-Lever actuator; Switching function: CO. Breaking capacity: 10 (4.0) A/400 VAC 1E4, 6.0 (2.5) A/400 VAC 5E4. Switching force: 0.7 to 1.25 N. Travel differential: max. 0.9 mm. Pretravel: max. 3.9 mm. Overtravel: min. 1.6 mm. Contact pitch: Less than 3.0 mm. Leakage current resistance: PTI 250. Ambient temperatures: - 40 to +100 °C. Contacts: silver. Connections: silver-plated. Version: closed, PA actuator, Latamide housing, white. Certifications: ENEC, UL, CSA.

With flat metal roll-and-lever actuators, type 1006.

Switch actuating force: 0.7 to 1.25 N. Travel difference: maximum 0.9 mm. Pretravel: maximum 3.9 mm. Overtravel: minimum 1.6 mm.

Technical attributes (type, connection type): 1006.1011, solder terminals

Technical specifications
Filter Property Value
Latching switching function On-On
Actuator roller lever
Switching point 20.8 mm ±1.2 mm
Shell Material PA
Connection solder connection
actuating force 0.7-1.25 N
Breaking capacity 10 (4) A/400 VAC
Design angled
Logistics
Property Value
Customs tariff number 85365080
Country of origin TN
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
