1005.4001 | Marquardt

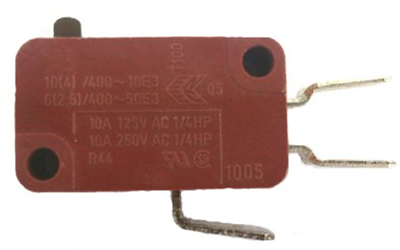

Miniature snap-action switche, On-Off, PCB connection, pin plunger, 1.5-2.5 N, 10 (4) A/400 VAC, 1005.4001
Unit Price (€ / pc.)
3.3796 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
1,689.80 € *
Price list
Quantity
Price per unit*
500 pcs.
3.3796 €
1000 pcs.
3.2844 €
2000 pcs.
3.1654 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature snap-action switches, series 1005, type Marquardt 1005.
In accordance with DIN 41635 A; Contact rating: 10 (4.0) A/400 VAC 1E4, 6.0 (2.5) A/400 VAC 5E4. Switching force: 1.5 to 2.5 N. Differential distance: max. 0.3 mm. Pretravel: max. 1.8 mm. Overtravel: min. 0.8 mm. Contact pitch: < 3.0 mm. Leakage current resistance: PTI 250. Ambient temperatures: –40 to +100 °C. Contacts: silver. Connections: silver-plated. Version: closed, PA actuator, Duroplast housing. Certifications: ENEC, UL, CSA.
Technical attributes (type, switching function, connection type): 1005.4001, NO contact, angled PCB connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching point | 14.7 mm ±0.5 mm | |
| Breaking capacity | 10 (4) A/400 VAC | |
| Latching switching function | On-Off | |
| actuating force | 1.5-2.5 N | |
| Actuator | pin plunger | |
| Connection | PCB connection | |
| Design | angled | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
