1005.0904 | Marquardt

Name: Snap acting switche, On-Off, solder connection, pin plunger, 2.4-3.8 N, 10 (6) A/250 VAC, IP40, 1005.0904
Brand: Marquardt
SKU: 12G9970
Availability: InStock

Snap acting switche, On-Off, solder connection, pin plunger, 2.4-3.8 N, 10 (6) A/250 VAC, IP40, 1005.0904

Order No.: 12G9970

EAN: 4099889212013

MPN:

1005.0904

Series: 1005

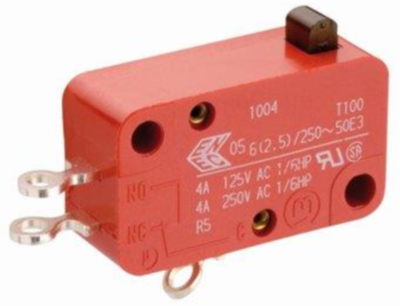

Image may differ

Key Specification:

Latching switching function On-Off

Actuator pin plunger

actuating force 2.4-3.8 N

Switching point 14.4 mm ±0.3 mm

Connection solder connection

Show variants: 25

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.2602 € *

Available: 68 pcs.

Total Price:

4.26 € *

Price list

Quantity

Price per unit*

1 pcs.

4.2602 €

10 pcs.

3.7604 €

100 pcs.

3.2963 €

250 pcs.

3.1654 €

1000 pcs.

2.9512 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Snap-action switch, 1005.0904, Marquardt

Marquardt 1005 Series miniature snap action single pole switches. The 1005 Series snap action switches are designed to DIN41635A with a contact resistance of <100mΩ and an insulation resistance of>100MΩ. The Marquardt 1005 Series is available with various actuators and terminations.

Technical specifications

Filter	Property	Value
	Latching switching function	On-Off
	Actuator	pin plunger
	actuating force	2.4-3.8 N
	Switching point	14.4 mm ±0.3 mm
	Connection	solder connection
	Design	angled
	Shell Material	PA
	Breaking capacity	10 (6) A/250 VAC
	Protection class	IP40
