9078.0201 | Marquardt
Slide switch, On-On, 2 pole, straight, 100 mA/30 V AC/DC, 9078.0201
No longer available from manufacturer
Unit Price (€ / pc.)
5.4740 € *
Available: 287 pcs.
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4740 €
10 pcs.
4.8076 €
100 pcs.
4.2245 €
250 pcs.
4.0579 €
1000 pcs.
3.7961 €
*incl. VAT plus shipping costs
Subject to prior sale

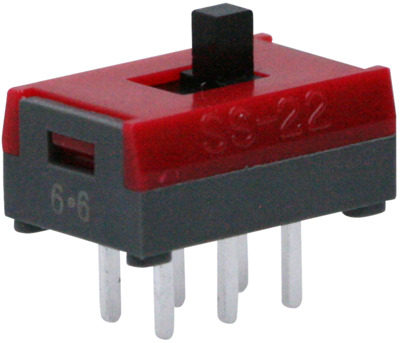

Slide switches, type Marquardt 9078.

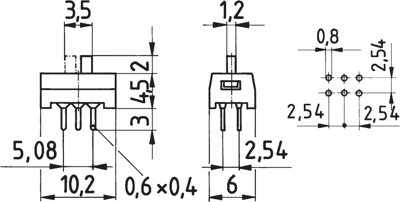

For PCB mounting; Maximum switching voltage/current: max. 30 V/100 mA. Contact resistance: max. 30 mohm. Insulation resistance: at least 100 Mohm. Dielectric strength: at least 500 VAC. Ambient temperature: –25 to +85 °C. Actuating travel: 2.0 mm. Slide: thermoplastic, black. Housing top section: thermoplastic, red. Housing: glass fiber-reinforced thermoplastic, gray. Contacts and terminals: silver-plated. Grid: 2.54 mm. Switching action: make before break.
With top slide, type 9078.
Type: 0201, double-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | silver-plated | |
| Shift position | On-On | |
| Breaking capacity | 100 mA/30 V AC/DC | |
| Grid | 2.54 mm | |
| Design | straight | |
| Connection | PCB pin | |
| Pin number | 2 pole | |
| Version | slide switch | |
| Actuation | on top |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
