9075.0601 | Marquardt

Slide switch, 0.4 A, -25 °C, 85 °C

Order No.: 11G724

EAN: 4099889201604

MPN:

9075.0601

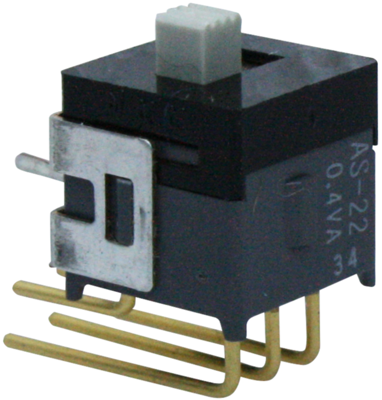

Image may differ

Key Specification:

Version slide switch

Shift position On-On

Pin number 2 pole

Actuation in front

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Slide switch, On-On, 2 pole, angled, 0.4 VA/28 V AC/DC, AS22AH

Order No.: 11G719

Manufacturer:

per pc. 6.0928 € *

Go to product

*incl. VAT plus shipping costs

Description

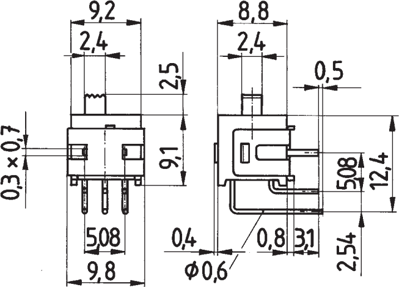

Slide switches, type Marquardt 9075../9076.

For PCB mounting. Terminal side sealed with epoxy resin to protect the contacts and to enable automated soldering; Contacts and terminals: gold-plated. Contacts and terminals: gold-plated. Slide: light-gray thermoplastic. Housing top section: black thermoplastic. Housing: gray glass fiber-reinforced thermoplastic. Slide travel: 2.5 mm. Grid: 2.54 mm. Breaking capacity: 0.4 VA. Voltage: max. 28 V. Contact resistance: max. 50 mohm. Insulation resistance: min. 500 mohm. Dielectric strength: min. 500 VAC. Ambient temperature: –25 to +85 °C.

With angled solder pins, type 9075.

Technical attributes (type, number of poles; breaking action Of, making action On): 9075.0601, double-pole, ON-ON

Technical specifications

Filter	Property	Value
	Grid	2.54 mm
	contact surface	gold-plated
	Actuation	in front
	Connection	PCB pin
	Pin number	2 pole
	Shift position	On-On
	Design	angled
	Breaking capacity	0.4 VA/28 V AC/DC
	Version	slide switch
