1205.0101 | Marquardt
Slide switch, On-On, 2 pole, straight, 10 A/250 VAC, 1205.0101
Unit Price (€ / pc.)
12.3641 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
2,472.82 € *
Price list
Quantity
Price per unit*
200 pcs.
12.3641 €
600 pcs.
11.9238 €
1000 pcs.
11.5549 €
*incl. VAT plus shipping costs
Subject to prior sale

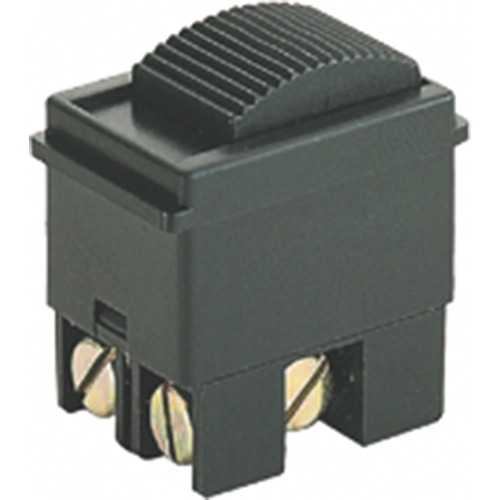

Slide switches series 1205, type Marquardt 1205.

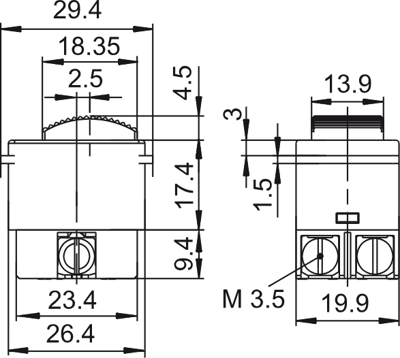

Double-pole CO switch, black, dust-proof with felt seal, housing with face collar; Breaking capacity: 10 (6.0) A/250 VAC, suitable for devices of safety class II. Connection type: screw terminals M3.5. Housing and actuator material: PA. Contacts: silver. Connections: silver-plated. Test logo: ENEC.
Type: 1205.0101, slide switch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | silver-plated | |
| Actuation | on top | |
| Connection | screw connection | |
| Pin number | 2 pole | |
| Shift position | On-On | |
| Design | straight | |
| Breaking capacity | 10 A/250 VAC | |
| Version | slide switch |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
