1941.1103 | Marquardt

Rocker switch, orange, 1 pole, On-Off, off switch, 6 (4) A/250 VAC, IP50, unlit, 1941.1103

Order No.: 11G256
EAN: 4099889185126
MPN:
1941.1103
Series: 1941

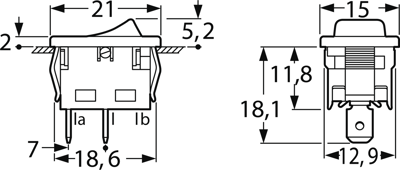

1941.1103 Marquardt Rocker Switches Image 1

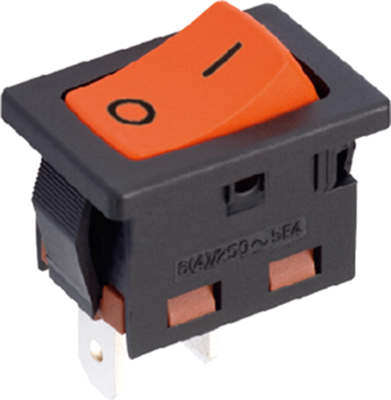

1941.1103 Marquardt Rocker Switches Image 2
Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
2.9988 € *
Available: 665 pcs.
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
10 pcs.
2.6418 €
100 pcs.
2.3205 €
500 pcs.
2.1420 €
1000 pcs.
2.0468 €
*incl. VAT plus shipping costs
Subject to prior sale

Rocker switches, break action, series 1941, type Marquardt 1941.

Attention: Position 0, switch is ON.

Single-pole, orange rocker, black imprint (I and 0); Breaking capacity: 6.0 (4.0) A/250 VAC 5E4. Peak inrush current (capacitive): 50 A. Contact resistance (new condition): max. 100 mohm (at 1.0 A/12 VDC). Insulation resistance (new condition): min. 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 50, suitable for safety class II devices. Insulation gap: to EN 61058 for reinforced or double insulation. Connection type: 4.8 x 0.8 mm tab terminals. Case and rocker material: PA. Contacts: silver. Connections: silver-plated. Combustibility: UL 94 V-2. Mounting: snap lock for panel thickness from 0.75 to 2.0 mm. Ambient temperatures: - 20 to +55 °C (connection side up to +100 °C).

Type: 1941.1103, rocker switch, break action

Technical specifications
Filter Property Value
Wall thickness 0.75 to 2 mm
contact surface silver-plated
Breaking capacity 6 (4) A/250 VAC
Actuator colour orange
Pin number 1 pole
Design rectangular
illuminated No
Connection plug-in connection
Shift position On-Off
Protection class IP50
Latching switching function off switch
Logistics
Property Value
Country of origin TN
Customs tariff number 85365080
Original Packaging Carton with 500 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
