1881.1104 | Marquardt

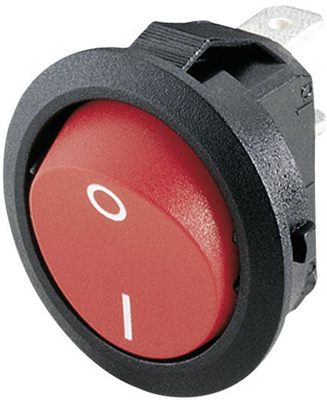

Rocker switches, break action, round, series 1881, type Marquardt 1881.

Single-pole, rocker with legend. For snap-on mounting on panels with thickness from 0.75 to 3.0 mm; Breaking capacity: 12 (4.0) A/250 VAC, 8.0 (8.0) A/250 VAC 5E4. Peak inrush current: 70 A. Contact resistance: < 100 mohm (1.0 A/12 VDC). Insulation resistance: > 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Contact pitch: > 3.0 mm. Switching force: 3.0 N. Rocker and housing material: PA. Contacts: silver. Connections: silver-plated. Inflammability: UL 94 V-2. Degree of protection: IP 40. Operating temperatures: –20 to +55 °C (connecting side to +100 °C). Connection type: 4.8 x 0.8 mm tab terminals. Certifications: ENEC, UL.

Technical attributes (type, housing color, rocker color, legend color): 1881.1104, black, red, white
