1881.1103 | Marquardt

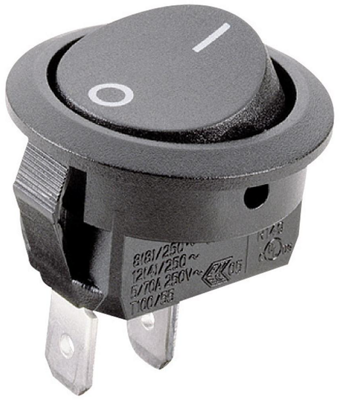

Rocker switch, black, 1 pole, On-Off, off switch, 12 (4) A/250 VAC, 8 (8) A/250 VAC, IP40, unlit, printed, 1881.1103
Rocker switches, break action, round, series 1881, type Marquardt 1881.
Single-pole, rocker with legend. For snap-on mounting on panels with thickness from 0.75 to 3.0 mm; Breaking capacity: 12 (4.0) A/250 VAC, 8.0 (8.0) A/250 VAC 5E4. Peak inrush current: 70 A. Contact resistance: < 100 mohm (1.0 A/12 VDC). Insulation resistance: > 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Contact pitch: > 3.0 mm. Switching force: 3.0 N. Rocker and housing material: PA. Contacts: silver. Connections: silver-plated. Inflammability: UL 94 V-2. Degree of protection: IP 40. Operating temperatures: –20 to +55 °C (connecting side to +100 °C). Connection type: 4.8 x 0.8 mm tab terminals. Certifications: ENEC, UL.
Technical attributes (type, housing color, rocker color, legend color): 1881.1103, black, black, white
| Filter | Property | Value |
|---|---|---|
| Shift position | On-Off | |
| Wall thickness | 0.75 to 3 mm | |
| Breaking capacity | 12 (4) A/250 VAC, 8 (8) A/250 VAC | |
| illuminated | No | |
| Actuator colour | black | |
| Pin number | 1 pole | |
| Latching switching function | off switch | |
| Connection | plug-in connection | |
| Design | round | |
| Printed | Yes | |
| Protection class | IP40 | |
| contact surface | silver-plated |
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CN |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
