1805.7118 | Marquardt

Rocker switch, green, 2 pole, On-Off, off switch, 12 (4) A/250 VAC, 8 (8) A/250 VAC, IP40, illuminated, printed, 1805.7118

Order No.: 11G2316
EAN: 4099889184662
MPN:
1805.7118
Series: 1800

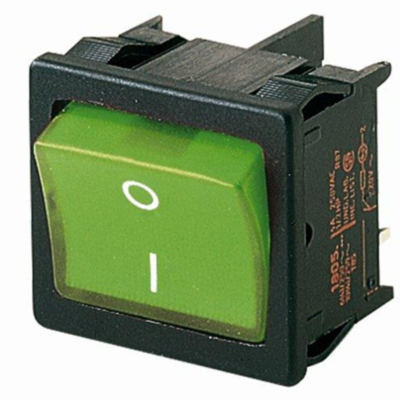

1805.7118 Marquardt Rocker Switches Image 1

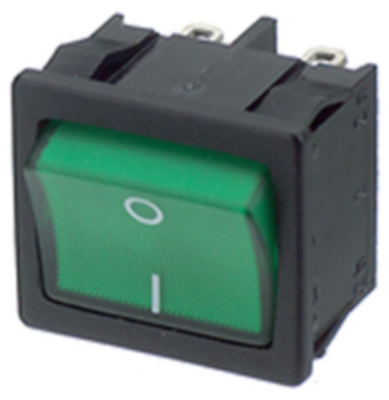

1805.7118 Marquardt Rocker Switches Image 2
Image may differ
Unit Price (€ / pc.)
5.8191 € *
Available: 877 pcs.
Total Price:
5.82 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8191 €
10 pcs.
5.1051 €
100 pcs.
4.4863 €
250 pcs.
4.3197 €
1000 pcs.
4.0222 €
*incl. VAT plus shipping costs
Subject to prior sale

Rocker switch, 1805.7118, Marquardt

Marquardt 1800 series single and double pole rocker switches. The long life 1800 rocker switches are suitable for use in Class II appliances and are available in a choice of styles that includes non illuminated, fully illuminated red, amber or green 230Vac neon actuators, black or white bodies and various abrasion-proof legends on the rocker switches actuator.

The 1800 rocker switches have silver contacts with SPNO, SPST, SPDT, DPNO, DPST or DPDT switching formats including 2 or 3 position switching, on-off, center off and changeovers with latching or momentary action contacts. The rocker switch body has a silk matt surface finish that snap fits into panel cut-outs with a panel thickness of between 0.75 and 3mm, the fixing ribs on the switch housing ensures a tight fit.

Technical specifications
Filter Property Value
Latching switching function off switch
Breaking capacity 12 (4) A/250 VAC, 8 (8) A/250 VAC
Connection plug-in connection
Protection class IP40
Design rectangular
Wall thickness 0.75 to 3 mm
Pin number 2 pole
contact surface silver-plated
illuminated Yes
Actuator colour green
min. Geräteausschnitt 19.2 x 21.9 mm
Printed Yes
Shift position On-Off
Logistics
Property Value
Country of origin TN
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
