1803.1121 | Marquardt

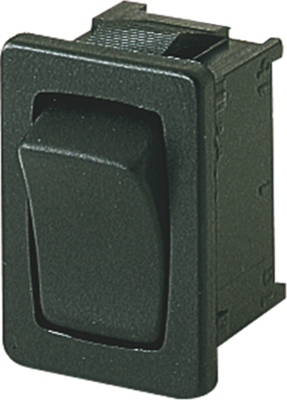

Rocker switch, black, 1 pole, On-On, changeover switch, 10 (4) A/250 VAC, 6 (4) A/250 VAC, IP40, unlit, unprinted, 1803.1121
Unit Price (€ / pc.)
2.0468 € *
Available: 647 pcs.
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.5946 €
250 pcs.
1.5113 €
1000 pcs.
1.3923 €
*incl. VAT plus shipping costs
Subject to prior sale
Rocket switch, 1803.1121, Marquardt
Single pole, black, without marking, switching capacity: 10 (4.0) A/250 VAC, contact resistance (new condition): <100 m Ohm (1.0 A/12 VDC), insulation resistance (new condition):>100 M Ohm (500 VDC), tracking resistance: PTI 250, protection class: IP 40, suitable for devices of protection class II, material rocker and housing: PA, contacts: Ag, connections: silver-plated, mounting: by snap-on mounting for wall thicknesses from 0.75 to 3.0 mm, ambient temperature: -20 to +55 °C (connection side up to +100 °C), test mark: ENEC, UL, CSA.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | silver-plated | |
| min. Geräteausschnitt | 19.2 x 12.9 mm | |
| illuminated | No | |
| Wall thickness | 0.75 to 3 mm | |
| Protection class | IP40 | |
| Latching switching function | changeover switch | |
| Shift position | On-On | |
| Breaking capacity | 10 (4) A/250 VAC, 6 (4) A/250 VAC | |
| Design | rectangular | |
| Actuator colour | black | |
| Connection | plug-in connection | |
| Pin number | 1 pole | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365007 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
