1801.6101 | Marquardt

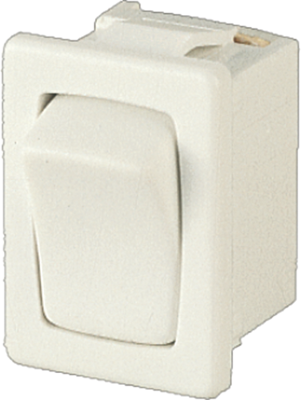

Rocker switch, white, 1 pole, On-Off, off switch, 10 (4) A/250 VAC, 6 (4) A/250 VAC, IP40, unlit, unprinted, 1801.6101
Rocker switches, break action, single-pole, series 1800, type Marquardt 1801.
Single-pole. Black or white. With or without marking; Breaking capacity: see the table. Contact resistance (new condition): < 100 mohm (1.0 A/12 VDC). Insulation resistance (new condition): > 100 mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40. Suited for devices of safety class II. Insulation gap: to EN 61058 for reinforced or double insulation. Rocker and housing material: PA. Contacts: silver. Connections: silver-plated. Snap-on mounting for panel thickness from 0.75 to 3.0 mm. Ambient temperatures: –20 to +55 °C (connection side up to +100 °C). Certifications: ENEC, UL, CSA.
White, with solder or tab terminals.
Technical attributes (type, connection type. breaking capacity): 1801.6101, solder terminals, 10 (4,0) A/250 VAC 1E4
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Latching switching function | off switch | |
| Wall thickness | 0.75 to 3 mm | |
| Actuator colour | white | |
| Pin number | 1 pole | |
| Breaking capacity | 10 (4) A/250 VAC, 6 (4) A/250 VAC | |
| min. Geräteausschnitt | 19.2 x 12.9 mm | |
| contact surface | silver-plated | |
| Shift position | On-Off | |
| Printed | No | |
| Protection class | IP40 | |
| Design | rectangular | |
| illuminated | No |
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85365080 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
