9450.0150 | Marquardt

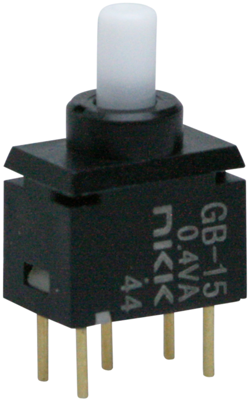

Pushbutton, 1 pole, white, unlit , 0.01 A/28 V, mounting Ø 4 mm, 9450.0150
No longer available from manufacturer
Unit Price (€ / pc.)
16.8266 € *
Available: 5 pcs.
Total Price:
16.83 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8266 €
10 pcs.
14.8036 €
50 pcs.
13.7921 €
150 pcs.
13.1971 €
500 pcs.
12.5188 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature toggle switches, momentary action, type Marquardt 9450.
Wash-proof, actuator side with rubber ring sealing, connection side sealed against the ingress of flux and solder fumes, compact design, for PCB mounting, safe contacting through two-point contact system; Breaking capacity: 0.4 VA, voltage: max. 28 V. Contact resistance: max. 80 mohm. Insulation resistance: min. 500 Mohm. Dielectric strength: min. 500 VAC. Ambient temperatures: –25 to +85 °C. Housing: PA, glass fiber-reinforced, black, contacts and terminals: gold-plated. Lenses are available separately.
Technical attributes (type, number of poles, switching actions, PCB terminals): 9450.0150, single-pole, CO, straight PCB terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 4 mm | |
| contact surface | gold-plated | |
| Printed | No | |
| Connection | solder pin | |
| Latching switching function | groping | |
| Actuator colour | white | |
| illuminated | No | |
| Vandal-proof | No | |
| Pin number | 1 pole | |
| Design | round | |
| Breaking capacity | 0.01 A/28 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
