1841.1301 | Marquardt

Pushbutton, 1 pole, black, unlit , 6 (2) A/250 VAC, mounting Ø 12 mm, IP40, 1841.1301

Order No.: 12G308
EAN: 4099889190854
MPN:
1841.1301
Series: 1840

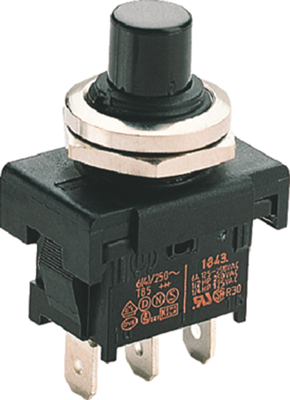

1841.1301 Marquardt Pushbutton Switches Image 1

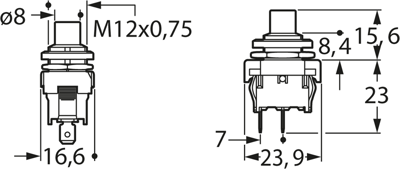

1841.1301 Marquardt Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
5.4978 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
549.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
5.4978 €

Pushbuttons and switches series 1840, type Marquardt 1841../1843.

Single-pole. Black, with M12 x 0.75 bushing mount. Distinct actuation characteristic; Breaking capacity: switches 6.0 (4.0) A/250 VAC, pushbuttons 6.0 (2.0) A/250 VAC. Contact resistance (new condition): < 100 mohm. (1.0 A/12 VDC). Insulation resistance (new condition): > 100 mohm (500 VDC). Leakage current resistance: PTI 250. Insulation resistance compliant with EN 61058 for reinforced or double insulation. Degree of protection: IP 40. Suited for devices of safety class II. Connection type: 4.8 x 0.8 mm tab terminals. Contact pitch: > 3.0 mm. Actuator and housing material: natural PA. Contacts: silver. Connections: silver-plated. Inflammability: UL 94 V-2. Ambient temperatures: –20 to +55 °C (connecting side up to +100 °C). Test logos: ENEC, UL, CSA.

Pushbutton version.

Technical attributes (type, version, figure (fig.)): 1841.1301, NC contact, Fig. A

Technical specifications
Filter Property Value
Vandal-proof No
Printed No
Installation diameter 12 mm
contact surface silver-plated
Breaking capacity 6 (2) A/250 VAC
Actuator colour black
Pin number 1 pole
Design round
illuminated No
Connection plug-in connection
Protection class IP40
Latching switching function groping
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Original Packaging Carton with 250 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
