1684.1101 | Marquardt

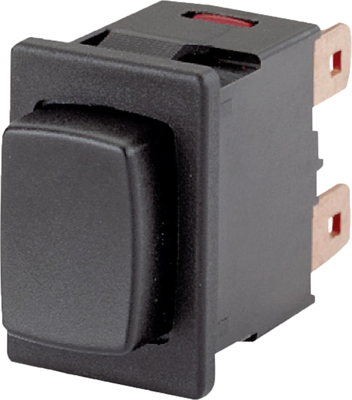

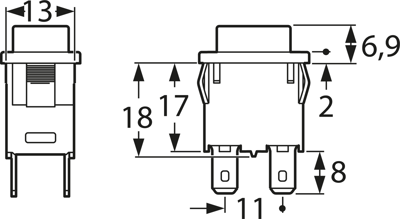

Pushbutton switch, 2 pole, black, unlit , 10 (8) A/250 VAC, 12 (8) A/250 VAC, 16 (4) A/250 VAC, 19.2 x 12.9 mm, IP40, 1684.1101
Pushbuttons and switches series 1683, type Marquardt 1684.
Double-pole, off switch; Breaking capacity: 16 (4.0) A/250 VAC 1E4, 12 (8.0) A/250 VAC 1E4, 10 (8.0) A/250 VAC 5E4. Contact resistance (new condition): max. 100 mohm (at 1.0 A/12 VDC). Insulation resistance: min. 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for safety class II devices. Insulation gap: to EN 61058 for reinforced or double insulation. Connection type: 4.8 x 0.8 mm tab terminals. Contact pitch: min. 3.0 mm. Contact material: silver. Connections: bare. Mounting: snap lock for panel thickness from 0.75 to 3.0 mm. Ambient temperatures: - 20 to +55 °C (connection side up to +100 °C). Test logo: ENEC, UL, CSA.
Technical attributes (type, number of poles, signal lamp, actuator color): 1684.1101, double-pole, OFF switch, not illuminated, black
| Filter | Property | Value |
|---|---|---|
| Connection | plug-in connection | |
| Latching switching function | latching | |
| Wall thickness | 0.75-1.25 mm | |
| Actuator colour | black | |
| Pin number | 2 pole | |
| Breaking capacity | 10 (8) A/250 VAC, 12 (8) A/250 VAC, 16 (4) A/250 VAC | |
| min. Geräteausschnitt | 19.2 x 12.9 mm | |
| contact surface | silver-plated | |
| Printed | No | |
| Protection class | IP40 | |
| Design | rectangular | |
| Vandal-proof | No | |
| illuminated | No |
| Property | Value |
|---|---|
| Original Packaging | Carton with 250 pieces |
| Country of origin | DE |
| Customs tariff number | 85365080 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
