1683.1201 | Marquardt

Pushbutton, 1 pole, black, unlit , 10 (8) A/250 VAC, 12 (8) A/250 VAC, 16 (4) A/250 VAC, 19.2 x 12.9 mm, IP40, 1683.1201

Order No.: 12G398
EAN: 4099889192537
MPN:
1683.1201
Series: 1683

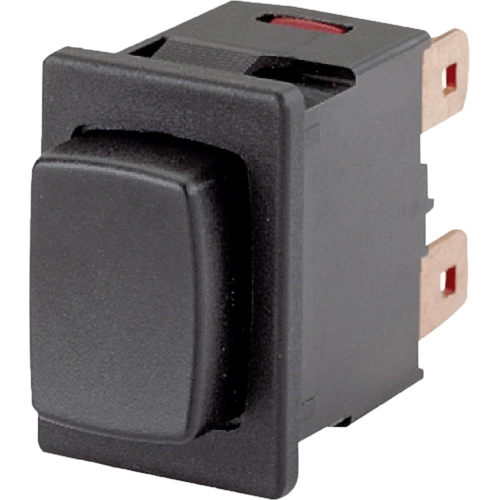

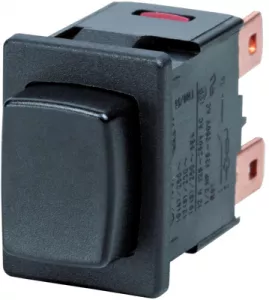

1683.1201 Marquardt Pushbutton Switches Image 1

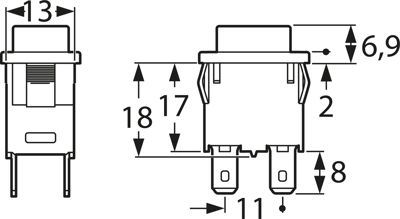

1683.1201 Marquardt Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
3.5819 € *
Available: 785 pcs.
Total Price:
3.58 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5819 €
10 pcs.
3.1535 €
250 pcs.
2.7727 €
500 pcs.
2.6537 €
1000 pcs.
2.5466 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbutton Marquardt 1683.1201

Single-pole, NO contact; Breaking capacity: 16 (4.0) A/250 VAC 1E4, 12 (8.0) A/250 VAC 1E4, 10 (8.0) A/250 VAC 5E4. Contact resistance (new condition): max. 100 mohm (at 1.0 A/12 VDC). Insulation resistance: min. 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for safety class II devices. Insulation gap: to EN 61058 for reinforced or double insulation. Connection type: 4.8 x 0.8 mm tab terminals. Contact pitch: min. 3.0 mm. Contact material: silver. Connections: bare. Mounting: snap lock for panel thickness from 0.75 to 3.0 mm. Ambient temperatures: - 20 to +55 °C (connection side up to +100 °C). Test logo: ENEC, UL, CSA.

Technical attributes (type, number of poles, signal lamp, actuator color): 1683.1201, single-pole, NO contact, not illuminated, black

Technical specifications
Filter Property Value
Vandal-proof No
Printed No
Wall thickness 0.75-1.25 mm
contact surface silver-plated
min. Geräteausschnitt 19.2 x 12.9 mm
Breaking capacity 10 (8) A/250 VAC, 12 (8) A/250 VAC, 16 (4) A/250 VAC
Actuator colour black
Pin number 1 pole
Design rectangular
illuminated No
Connection plug-in connection
Protection class IP40
Latching switching function groping
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Original Packaging Carton with 250 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
