1117.0206 | Marquardt

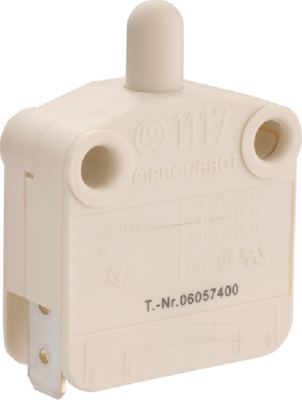

Snap-action switches with double interrupting jump contact system series 1117, type Marquardt 1117.

Single-pole, NO or NC contact; Housing and actuator color: plain. Contact rating: 16 (6.0) A/400 VAC. Contact resistance (new state): <100 mohm (1.0 A/12 VDC). Insulation resistance (new state): >100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for devices of safety class II and if in compliance with device installation conditions. Insulation resistance: to EN 61058 with reinforced or double insulation. Connection type: 6.3 x 0.8 mm tab terminals. Contact pitch: >3.0 mm. Switching force: 3.5 ±0.5 N. Switching position: 12.4 ±0.5 mm. Differential distance: max. 2.6 mm. Home position: max. 15.2 mm. Permitted end position: 8.5 mm. Housing and actuator material: PA, glass fiber-reinforced. Contacts: silver. Connections: silver-plated. Combustibility: UL 94 V-0. Ambient temperatures: –40 to +85 °C. Test logo: ENEC, UL, CSA.

Technical attributes (type, switching action): 1117.0206, NC contact
