10441 | M+S Damerius
Insulating tube, inside Ø 10 mm, natural, PUR, -20 to 155 °C, 10441
Unit Price (€ / mtr.)
   2.9631 €  *
   Available: 464 mtr.
 Total Price:
  2.96 € *
  Price list
 Quantity
 Price per unit*
 1 mtr.
 2.9631 €
 10 mtr.
 2.6061 €
 100 mtr.
 2.2967 €
 250 mtr.
 2.2015 €
 1000 mtr.
 2.0587 €
  *incl. VAT plus shipping costs
  Subject to prior sale

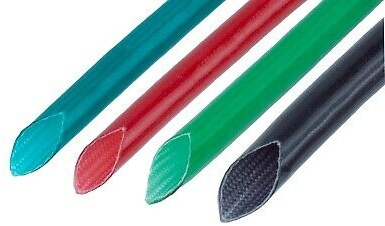

 Glass filament insulating tubing, type Adaglas.
Fabric-containing insulating tubing to EN 60684; Fabrics: glass filament. DD Varnish. Color: plain. Wall thickness: 0.5 mm. Breakdown voltage: 3.0 kV. Contact resistance: 80 Mohm. Temperature class: F. Heat resistance: 155 °C.
Technical attributes (type, internal diameter (ID)): Adaglas 100, ID 10 mm
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| max. operating temperature | 155 °C | |
| min. operating temperature | -20 °C | |
| Colour | natural | |
| Material | PUR | |
| Wall thickness | 0.5 mm | |
| Inner diameter | 10 mm | |
| Version | insulating tube | |
| Thermal class | F |
 Download
  Logistics

 | Property | Value |
|---|---|
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
