5500 04DL1 314 10M | Lutronic
Sensor-actuator distributor, 4 x M12 (5 pole), 5500 04DL1 314 10M
Unit Price (€ / pc.)
135.9575 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
135.96 € *
Price list
Quantity
Price per unit*
1 pcs.
135.9575 €
2 pcs.
126.4375 €
5 pcs.
118.8453 €
10 pcs.
110.5391 €
*incl. VAT plus shipping costs
Subject to prior sale

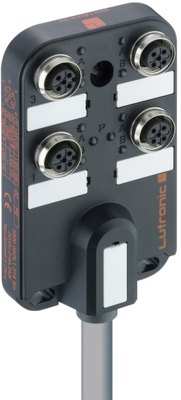

Sensor-actuator distributor, 5500 04DL1 314 10M, Lutronic
Passive distribution box M12, 4-port, double signal, with LEDs, main connection: PUR cable, gray, 10 m lenght. Rated voltage: 10 to 30 VDC (24 VDC), rated current: ≤ 2.0 A (per port), ≤ 8.0 A (total), protection class: IP67, temperature range: -40 °C to 80 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| IO Ports | 4 x M12 (5 pole) | |
| Bus Input | M12 (4 pole) | |
| Power Input | cable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
