1231 08 T9CP | Lutronic

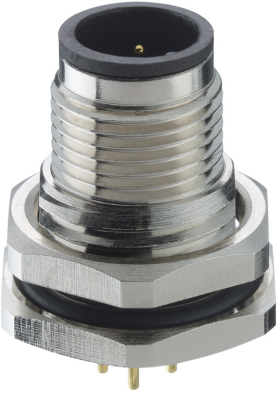

Panel plug, M12, 8 pole, solder pins, screw locking, straight, 1231 08 T9CP
Order No.: 48F166
EAN: 4099889691658
MPN:
1231 08 T9CP
Unit Price (€ / pc.)
12.8758 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
12.88 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8758 €
5 pcs.
12.2094 €
10 pcs.
11.4240 €
25 pcs.
10.4125 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1231 08 T9CP, LUTRONIC
Features
- Contact material: CuZn, Pre-Nickel and Gold-plated
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | solder pins | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | rear mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
