1230 05 T16CW 0,5M | Lutronic
Panel plug, M12, 5 pole, straight, 1230 05 T16CW 0,5M
Order No.: 48F162
EAN: 4099891106133
MPN:
1230 05 T16CW 0,5M
Unit Price (€ / pc.)
11.1384 € *
Available: 14 pcs.
Total Price:
11.14 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1384 €
10 pcs.
9.8056 €
50 pcs.
9.1392 €
150 pcs.
8.7346 €
500 pcs.
8.2824 €
*incl. VAT plus shipping costs
Subject to prior sale

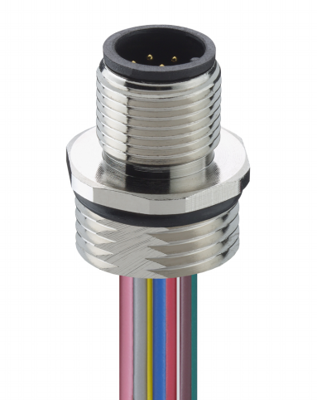

M12 male panel mount connector, 5 poles, A-coded with strands 0.5 m long, 5 x 0.34 mm² (AWG 22), according to UL style 1007, strand material: PVC, brown/white/blue/black/green-yellow. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Coding | A | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated | |
| Degree of protection (IP) | IP67 | |
| Product type | panel plug | |
| Assembly | front mounting | |
| Version | cable 0.5 m, PVC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
