1230 04 T16CW 0,5M | Lutronic

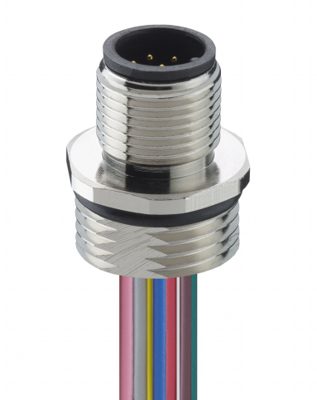

Panel plug, M12, 4 pole, straight, 1230 04 T16CW 0,5M
Order No.: 48F161
EAN: 4099891106126
MPN:
1230 04 T16CW 0,5M
Unit Price (€ / pc.)
9.9484 € *
Available: 10 pcs.
Total Price:
9.95 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9484 €
10 pcs.
8.7584 €
50 pcs.
8.1515 €
150 pcs.
7.8064 €
500 pcs.
7.4018 €
*incl. VAT plus shipping costs
Subject to prior sale
M12 male panel mount connector, 4 poles, A-coded with strands 0.5 m long, 4 x 0.34 mm² (AWG 22), according to UL style 1007, strand material: PVC, brown/white/blue/black. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | front mounting | |
| Orientation | straight | |
| Coding | A | |
| Version | cable 0.5 m, PVC | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
