1221 05 T9CP | Lutronic

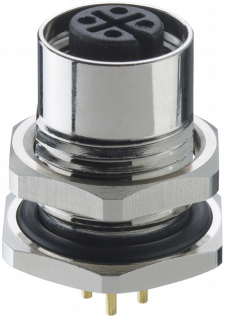

Panel socket, M12, 5 pole, solder pins, screw locking, straight, 1221 05 T9CP
Order No.: 48F159
EAN: 4099889691610
MPN:
1221 05 T9CP
Unit Price (€ / pc.)
7.9611 € *
Available: 9 pcs.
Next delivery: 10 pcs. on 2025-12-19
Total Price:
7.96 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9611 €
10 pcs.
6.9972 €
50 pcs.
6.5331 €
150 pcs.
6.2237 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1221 05 T9CP, LUTRONIC
Features
- Contact material: CuZn, Pre-Nickel and Gold-plated
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Coding | A | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated | |
| Degree of protection (IP) | IP67 | |
| Contact connection | solder pins | |
| Product type | panel socket | |
| Assembly | rear mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
