1221 05 T16CW100 0,5M | Lutronic
Panel socket, M12, 5 pole, straight, 1221 05 T16CW100 0,5M
Order No.: 71F8028
EAN: 4099891671457
MPN:
1221 05 T16CW100 0,5M
Unit Price (€ / pc.)
5.0218 € *
Standard delivery time from the manufacturer is: On Request

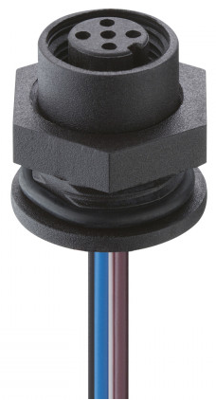

Panel mount socket, 1221 05 T16CW100 0,5M, Lutronic
M12 panel mount connector, female, A-coded, IP67, for rear side mounting, thread M16, with nut and stranded wires, with plastic housing, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | rear mounting | |
| Orientation | straight | |
| Coding | A | |
| Version | cable 0.5 m, PVC | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 10 pieces |
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
