1220 08 T16CW 0,5M | Lutronic

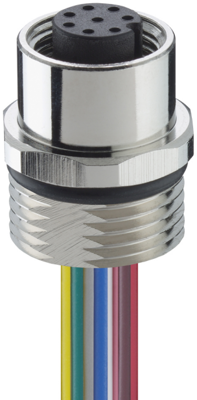

Panel socket, M12, 8 pole, straight, 1220 08 T16CW 0,5M
Order No.: 48F157
EAN: 4099891106119
MPN:
1220 08 T16CW 0,5M
Unit Price (€ / pc.)
13.6969 € *
Available: 12 pcs.
Next delivery: 10 pcs. on 2026-01-16
Total Price:
13.70 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6969 €
10 pcs.
12.0428 €
50 pcs.
11.2098 €
150 pcs.
10.7338 €
500 pcs.
10.1864 €
*incl. VAT plus shipping costs
Subject to prior sale
M12 female panel mount connector, 8 poles, A-coded with strands 0.5 m long, 8 x 0.25 mm² (AWG 24), according to UL style 1007, strand material: PVC, white/brown/green/yellow/gray/pink/blue/red. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Coding | A | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated | |
| Degree of protection (IP) | IP67 | |
| Product type | panel socket | |
| Assembly | front mounting | |
| Version | cable 0.5 m, PVC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
