1220 05 T20CW100 0,5M | Lutronic

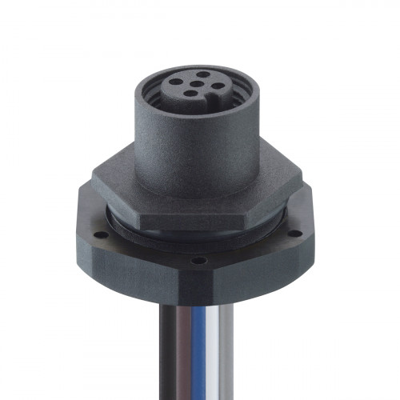

Panel socket, M12, 5 pole, straight, 1220 05 T20CW100 0,5M
Order No.: 71F8001
EAN: 4099891671181
MPN:
1220 05 T20CW100 0,5M
Unit Price (€ / pc.)
4.8552 € *
Standard delivery time from the manufacturer is: 14 Weeks
Panel mount connector, 1220 05 T20CW100 0,5M, Lutronic
M12 panel mount connector, female, A-coded, IP67, for front mounting, thread M20, with nut and stranded wires with plastic housing, black.
Technical specifications
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | front mounting | |
| Orientation | straight | |
| Coding | A | |
| Version | cable 0.5 m, PVC | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
