0830 04 T8CW 0,5M | Lutronic

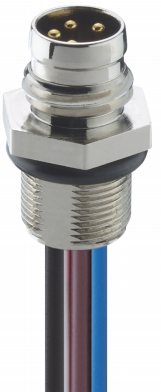

Panel plug, M8, 4 pole, straight, 0830 04 T8CW 0,5M
Order No.: 48F124
EAN: 4099891105808
MPN:
0830 04 T8CW 0,5M
Unit Price (€ / pc.)
5.9976 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
59.98 € *
Price list
Quantity
Price per unit*
10 pcs.
5.9976 €
20 pcs.
5.6882 €
30 pcs.
5.4145 €
40 pcs.
5.0932 €
50 pcs.
4.8076 €
*incl. VAT plus shipping costs
Subject to prior sale
M8 female panel mount connector, 4 poles, A-coded with strands 0.5 m long, 4 x 0.34 mm² (AWG 22), according to UL style 1007, strand material: PVC, brown/white/blue/black. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cable 0.5 m, PVC | |
| Product type | panel plug | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Coding | A | |
| Additional parts | equipped | |
| contact surface | nickel-plated/gold-plated | |
| Assembly | front mounting | |
| Thread size | M8 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
