0830 03 T8CW 0,5M | Lutronic

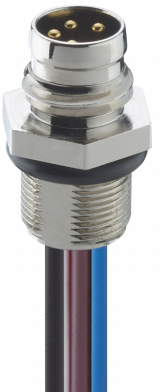

Panel plug, M8, 3 pole, straight, 0830 03 T8CW 0,5M
Order No.: 48F123
EAN: 4099891105792
MPN:
0830 03 T8CW 0,5M
Unit Price (€ / pc.)
8.5442 € *
Available: 30 pcs.
Total Price:
8.54 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5442 €
10 pcs.
7.5208 €
100 pcs.
6.5926 €
250 pcs.
6.3427 €
1000 pcs.
5.9262 €
*incl. VAT plus shipping costs
Subject to prior sale
M8 female panel mount connector, 3 poles, A-coded with strands 0.5 m long, 3 x 0.34 mm² (AWG 22), according to UL style 1007, strand material: PVC, brown/blue/black. Rated voltage: 50 VAC/60 VDC (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 1.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Coding | A | |
| Pin number | 3 pole | |
| Thread size | M8 | |
| contact surface | nickel-plated/gold-plated | |
| Degree of protection (IP) | IP67 | |
| Product type | panel plug | |
| Assembly | front mounting | |
| Version | cable 0.5 m, PVC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
