1200 12 315 5M | Lutronic

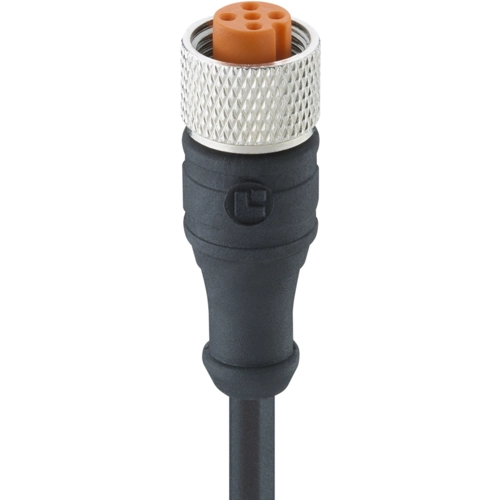

Sensor actuator cable, M12-cable socket, straight to open end, 12 pole, 5 m, PUR, black, 4 A, 1200 12 315 5M
Order No.: 48F191
EAN: 4099891106157
MPN:
1200 12 315 5M
Unit Price (€ / pc.)
49.0399 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
49.04 € *
Price list
Quantity
Price per unit*
1 pcs.
49.0399 €
10 pcs.
45.6246 €
25 pcs.
41.9594 €
50 pcs.
38.6036 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor/actuator cable with molded connector, one side with straight M12 female connector, A-coded, 12 poles, other side with open ends, 12 x 0.25 mm² (AWG 24), cable material: PUR, black, 5 m long, according to UL style 20549. Rated voltage: 250 V (at pollution degree 3), rated current: 4.0 A (at 40 °C), rated impulse voltage: 2.5 kV, protection class: IP67, temperature range: -25 °C to 80 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Pin number | 12 pole | |
| Cable length | 5 m | |
| Colour | black | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
