2630 09 T22CB100 | Lutronic
Panel plug, 9 pole, solder connection, quick locking, straight, 2630 09 T22CB100
Unit Price (€ / pc.)
8.9726 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
8.97 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9726 €
10 pcs.
8.2586 €
50 pcs.
7.5208 €
100 pcs.
6.7711 €
*incl. VAT plus shipping costs
Subject to prior sale

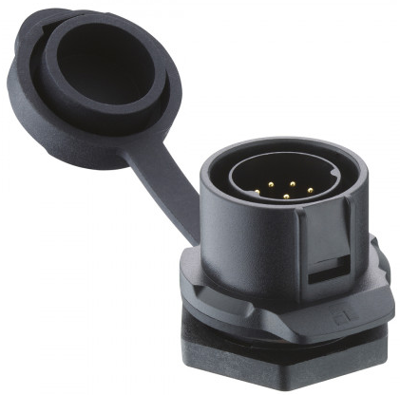

Quicklock chassis plug, 2630 09 T22CB100, Lutronic
Quicklock chassis plug, IP67, size 20, straight, with plastic housing, solder terminals and protecting cap (IP65).
Technical specifications
| Orientation | straight | |
| Pin number | 9 pole | |
| Type of locking | quick locking | |
| Contact connection | solder connection | |
| Assembly | panel mounting | |
| Cable cross-section | 0.34-0.75 mm² | |
| Version | panel plug | |
| contact surface | gold-plated | |
| Shell Material | plastic |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
