2630 02 T22CB100 | Lutronic
Panel plug, 2 pole, solder connection, quick locking, straight, 2630 02 T22CB100
Unit Price (€ / pc.)
7.7588 € *
Available: 23 pcs.
Total Price:
7.76 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7588 €
10 pcs.
7.1400 €
50 pcs.
6.4974 €
100 pcs.
5.8429 €
*incl. VAT plus shipping costs
Subject to prior sale

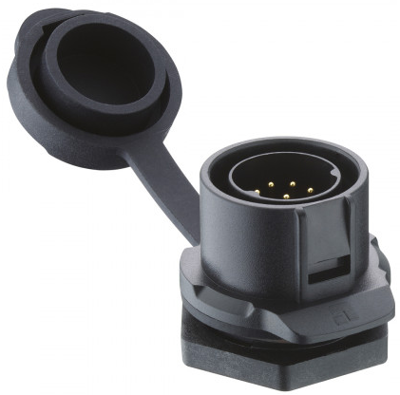

Quicklock chassis plug, 2630 02 T22CB100, Lutronic
Quicklock chassis plug, IP67, size 20, straight, with plastic housing, solder terminals and protecting cap (IP65).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Shell Material | plastic | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Version | panel plug | |
| Type of locking | quick locking | |
| Cable cross-section | 2.5-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
