2440 07 T09CB T | Lutronic
Jack, 7 pole, solder connection, quick locking, straight, 2440 07 T09CB T
Unit Price (€ / pc.)
10.1864 € *
Available: 42 pcs.
Total Price:
10.19 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1864 €
10 pcs.
9.3772 €
50 pcs.
8.5323 €
100 pcs.
7.6755 €
*incl. VAT plus shipping costs
Subject to prior sale

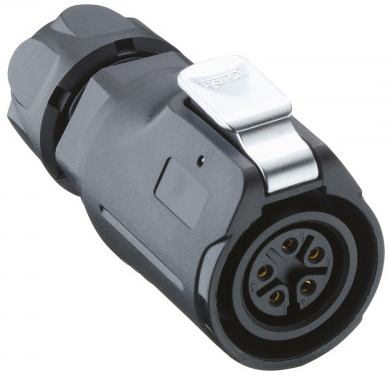

Quicklock socket, 2440 07 T09CB T, Lutronic
Quicklock socket with locking latch, IP67, size 16, straight, with plastic housing and solder terminals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Cable diameter | 5 to 7 mm | |
| Type of locking | quick locking | |
| Pin number | 7 pole | |
| contact surface | gold-plated | |
| Cable cross-section | 0.34-0.75 mm² | |
| Shell Material | plastic | |
| Contact connection | solder connection | |
| Assembly | cable assembly | |
| Version | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
