2420 04 T18CB100 | Lutronic

Panel socket, 4 pole, solder cup, quick locking, straight, 2420 04 T18CB100

Order No.: 72F3051
EAN: 4099889742411
MPN:
2420 04 T18CB100
Series: Quicklock
2420 04 T18CB100 Lutronic Other Circular Connectors

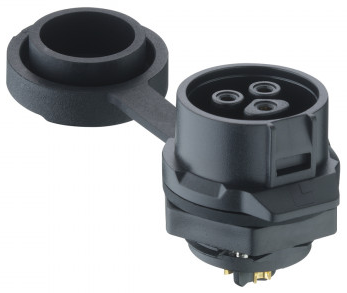

Image may differ
Unit Price (€ / pc.)
6.2951 € *
Available: 0 pcs.
Next delivery: 10 pcs. on 2025-08-01
Leadtime: 19 Weeks **
Total Price:
6.30 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2951 €
10 pcs.
5.5573 €
100 pcs.
4.8671 €
250 pcs.
4.6767 €
1000 pcs.
4.3792 €
*incl. VAT plus shipping costs
**Subject to prior sale

Quicklock circular connector, IP67

Quicklock chassis socket, IP67, size 16, straight version, with plastic housing, solder terminals and protecting cap (IP65)

Features

  • Temperature range: -40 °C/+80 °C
  • Rated voltage: 400 V
  • Contact resistance: ≤ 5 mΩ
  • Approvals: cULus
Technical specifications
Version panel socket
Cable cross-section 1.0-1.5 mm²
Pin number 4 pole
Orientation straight
Contact connection solder cup
Type of locking quick locking
Cable diameter 3 to 8.5 mm
Assembly chassis mounting
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
