2320 02 T12CB100 | Lutronic
Panel socket, 2 pole, solder cup, quick locking, straight, 2320 02 T12CB100
Unit Price (€ / pc.)
4.4982 € *
Available: 73 pcs.
Next delivery: 45 pcs. on 2025-11-21
Total Price:
4.50 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4982 €
10 pcs.
3.9508 €
100 pcs.
3.4748 €
250 pcs.
3.3320 €
1000 pcs.
3.1178 €
*incl. VAT plus shipping costs
Subject to prior sale
Quicklock circular connector, IP67

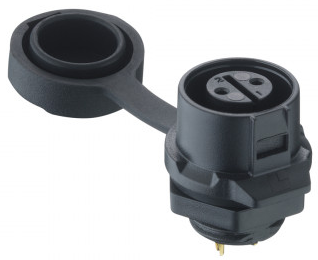

Quicklock chassis socket, IP67, size 12, straight version, with plastic housing, solder terminals and protecting cap (IP65)
Features
- Temperature range: -40 °C/+80 °C
- Rated voltage: 125 V
- Contact resistance: ≤ 10 mΩ
- Approvals: cULus
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel socket | |
| Cable cross-section | 0.34-0.75 mm² | |
| Pin number | 2 pole | |
| Orientation | straight | |
| Contact connection | solder cup | |
| Type of locking | quick locking | |
| Cable diameter | 3 to 6 mm | |
| Assembly | chassis mounting | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PBT |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
