2410 01 | Lumberg
USB-A socket, 4 pole, USB 2.0, PCB connection, 2410 01
Order No.: 72F2250
EAN: 4099889815108
MPN:
2410 01
This item is no longer available.
As an alternative, we recommend the following item:

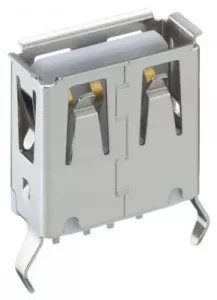

USB-A socket, 4 pole, USB 2.0, PCB connection, 2410 11
Order No.: 72F2251
Manufacturer: Lumberg
per pc. 0.9401 € *

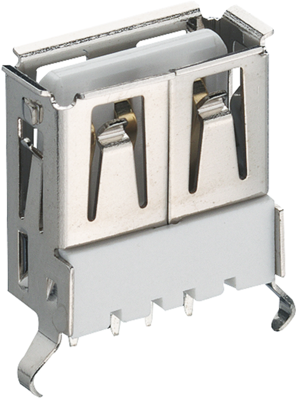

USB chassis socket, 2410 01, Lumberg
Type A, 4-pole, for PCBs, compatible to USB 2.0; Rated voltage: 30 VAC. Rated current: max. 1.0 A. Contact resistance: max. 30 mohm. Insulation resistance: min. 100 Mohm. Test voltage: 500 V/60 s. Case: CuZn, tinned. Contact block: glass fiber-reinforced PBT. Contact spring: CuSn, gold-plated.
Type: 2410 01, USB chassis socket.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| USB Standard | USB 2.0 | |
| Version | A socket | |
| Assembly | PCB mounting | |
| Contact connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
