KREN 03 BEDR. | Lumberg

Name: Mains connection terminal, 3 pole, 0.2-4.0 mm², light gray, screw connection, 15 A
Brand: Lumberg
SKU: 09H590
Price: 1.58 EUR
Availability: InStock

Mains connection terminal, 3 pole, 0.2-4.0 mm², light gray, screw connection, 15 A

Order No.: 09H590

EAN: 4099891041397

MPN:

KREN 03 BEDR.

Series: KREN

Image may differ

Key Specification:

Version mains connection terminal

Pin number 3 pole

Cable cross-section 0.2-4.0 mm²

Colour light gray

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.5827 € *

Available: 2,288 pcs.

Leadtime: 8 Weeks **

Total Price:

1.58 € *

Price list

Quantity

Price per unit*

1 pcs.

1.5827 €

25 pcs.

1.3447 €

100 pcs.

1.2495 €

250 pcs.

1.1900 €

1000 pcs.

1.0829 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

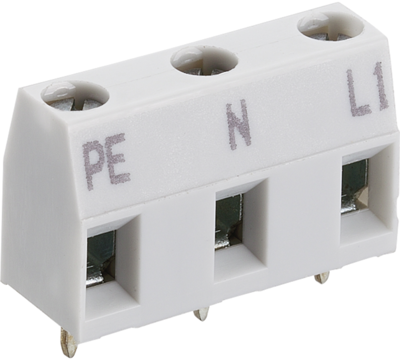

Screw terminal block for main supply, type KREN 03

With contact labeling PE, N, L1.

Strip length: 25 mm

Air gap/creepage distance: to DIN VDE 0110/IEC 60664: 8.6/8.6 mm

Leakage current resistance: CTI 600

Technical specifications

	Connection	screw connection
	Version	mains connection terminal
	AWG cross-section	AWG 22-12
	Colour	light gray
	Cable cross-section	0.2-4.0 mm²
	Rated current	15 A
	Pin number	3 pole
