KRESS 06 | Lumberg

PCB terminal, 6 pole, pitch 5 mm, AWG 22-12, 15 A, screw connection, light gray, KRESS 06

Order No.: 08H758
EAN: 4099891038137
MPN:
KRESS 06
Series: KRESS
KRESS 06 Lumberg PCB Terminal Blocks

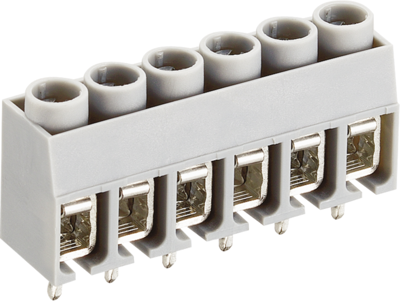

Image may differ
Unit Price (€ / pc.)
0.9758 € *
Available: 930 pcs.
Total Price:
0.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.9758 €

Screw terminal block, type Lumberg KRESS 06

With wire protection and single-row solder terminals.

Design: vertical, without test tap, screw termination.

Strip length: 30 mm

Overvoltage category to DIN VDE 0110/IEC 60664: III

Insulation group to DIN VDE 0110/IEC 60664: I

Contact carrier: PA 6.6, V2 to UL 94, light-gray

Technical specifications
Filter Property Value
Pin number 6 pole
Grid 5 mm
Cable cross-section 0.2-2.5 mm²
AWG cross-section AWG 22-12
Contact distance RM 5
Rated current 15 A
Rated voltage 300 V
Width 8.3 mm
Height 16.2 mm
Depth 12 mm
Connection screw connection
Assembly THT
Colour light gray
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
